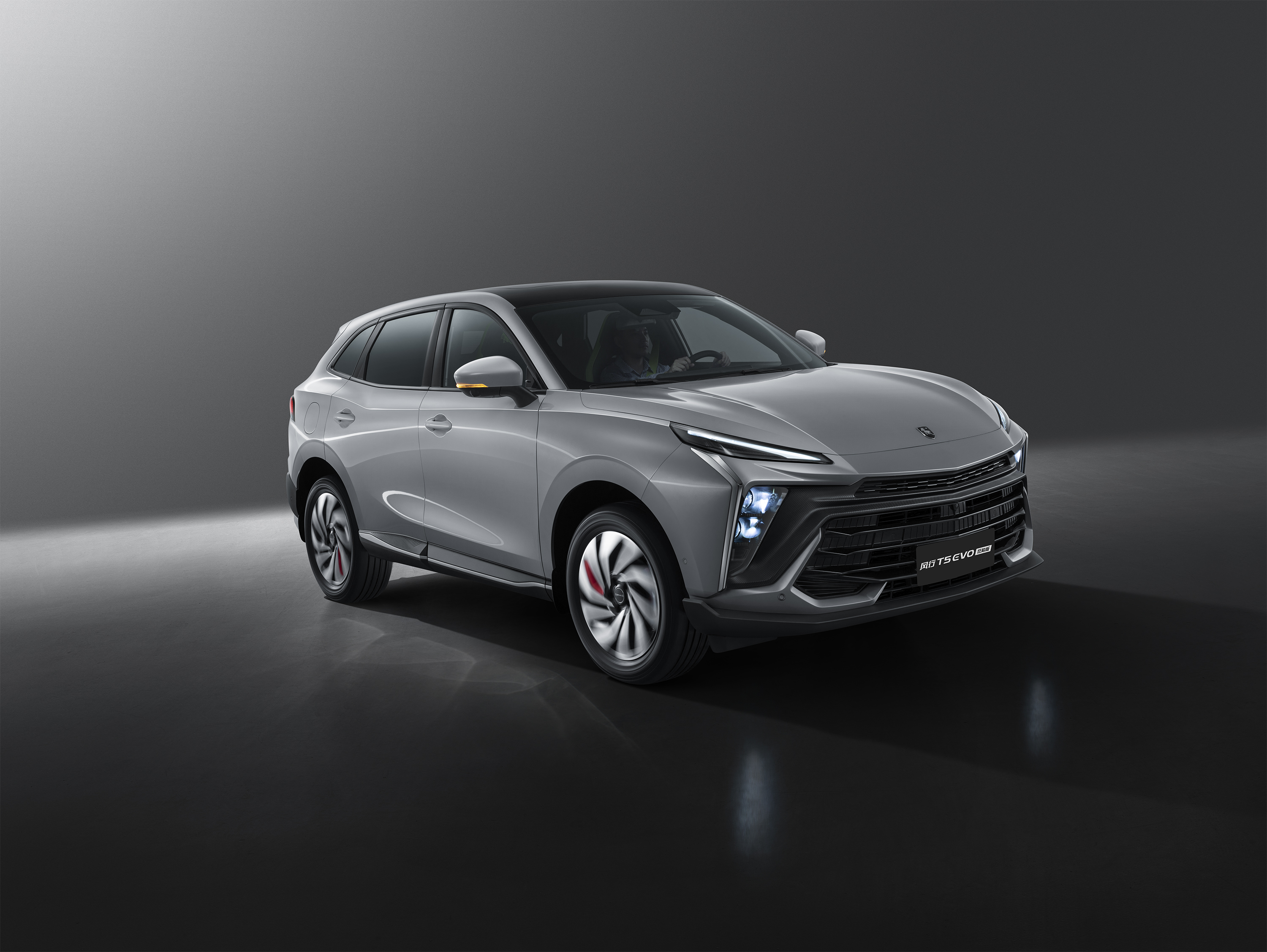

Forthing hybrid SUV T5HEV 2023 New Product
T5 HEV is a hybrid model developed on the basis of T5EVO: CT-E engine (derived from Citroen engine technology and developed by Dongfeng Liuzhou Motor Co., Ltd.)+two-motor hybrid assembly, 2kwh battery pack, voltage conversion two-in-one, HCU, EHB brake-by-wire system assembly and electric air conditioner;
Features
- The brand-new sports appearance, artistic and gorgeous, high-order dynamics, show personality, show the extreme pursuit of contemporary youth. Increased the horizontal area of the front bumper, color echoes, type superimposed, sharp,reflecting the sense of attack, speed.

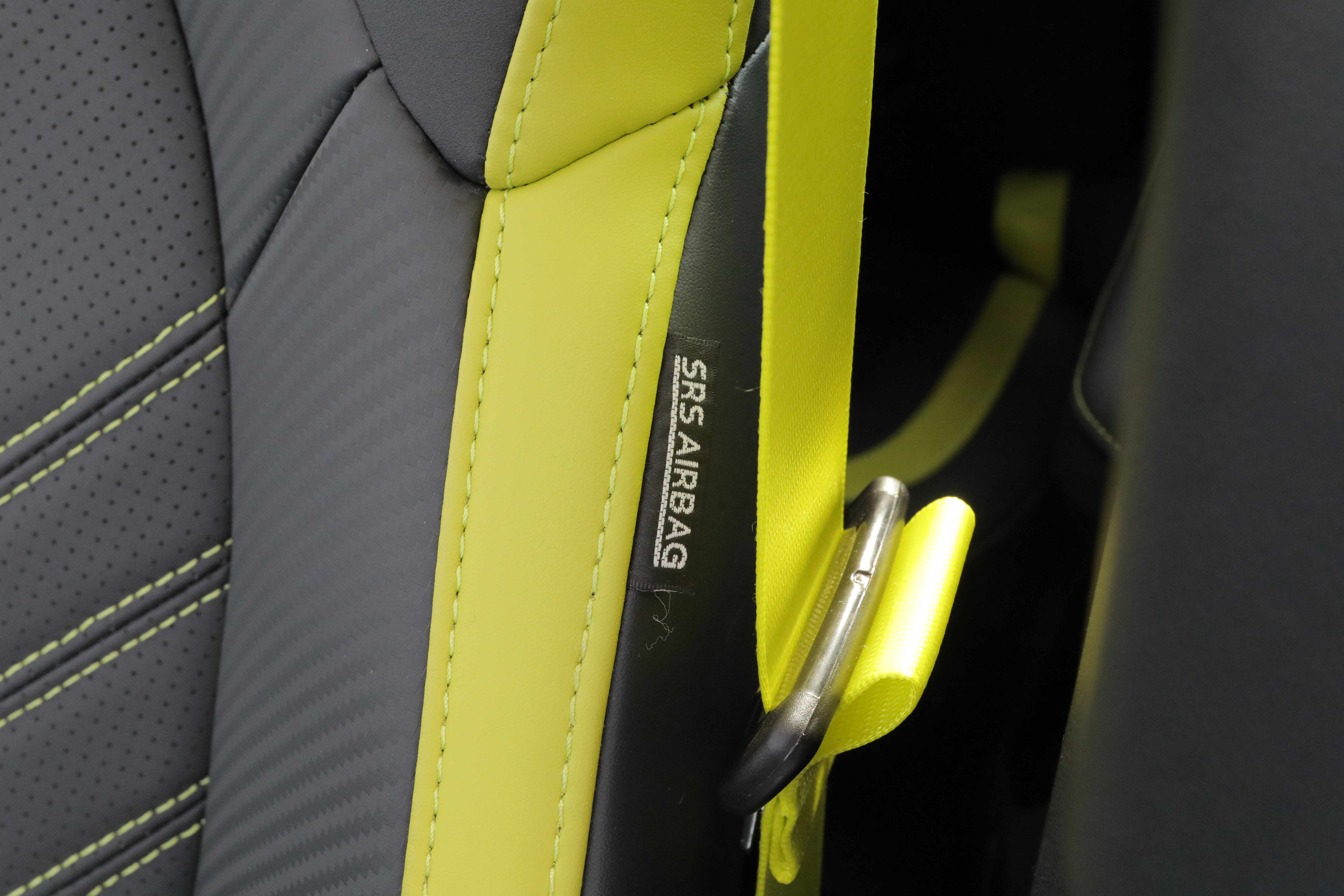

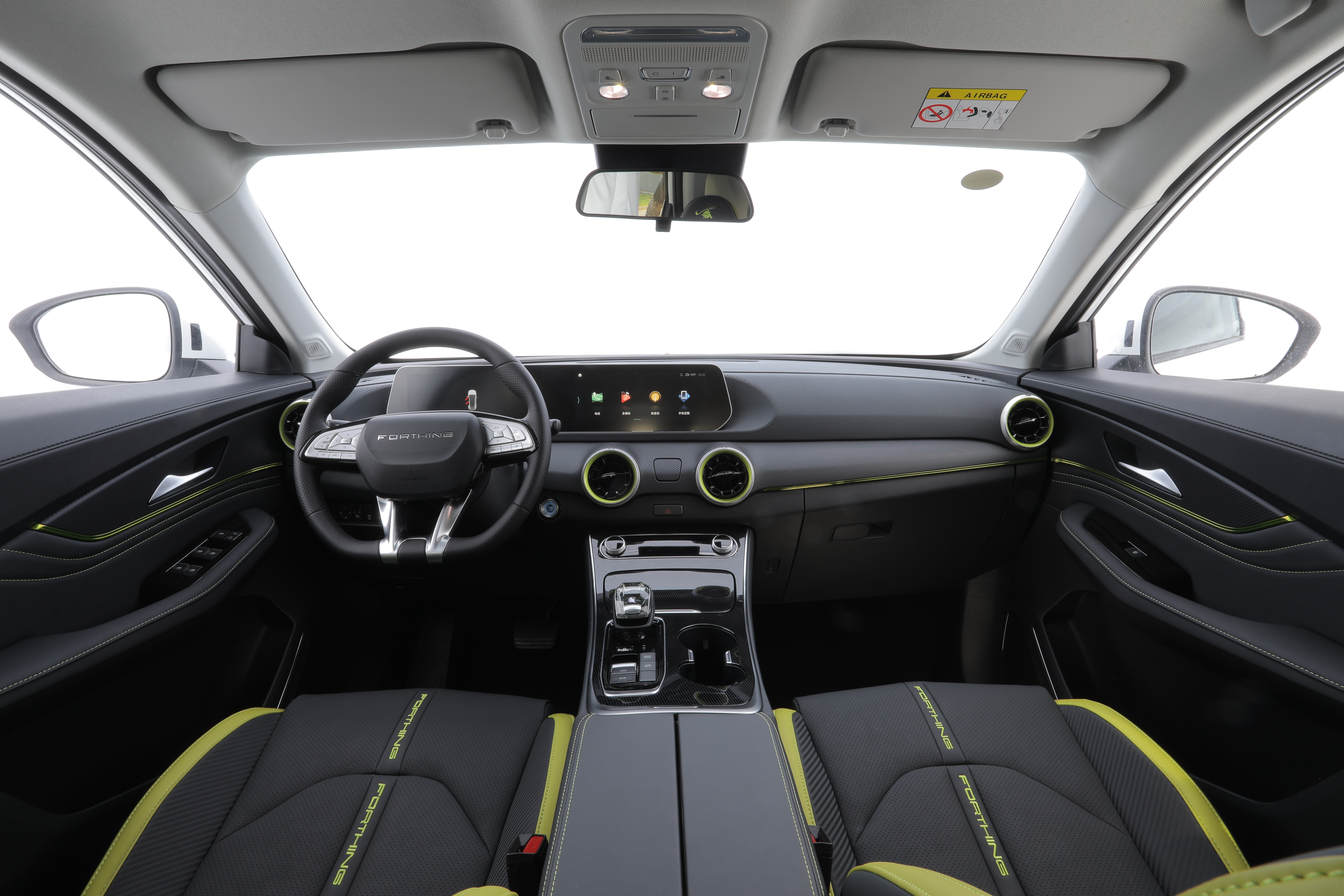

- Interior CMF upgrade, dynamic theme, green represents vitality and ultimate vitality, full of unique personality, which can best reflect the dynamic.
- 0 noise: waiting for traffic lights and traffic jams are quiet and soundless, enjoy the quiet moment Conventional fuel car waiting for traffic lights to turn off the air conditioning (AC OFF): 38+ T5EVO HEV: 27 Competing conventional fuel cars waiting for traffic lights with AC ON: 42+ T5EVO HEV: 37.2
Main parameters of vehicle model
| 2023 Dongfeng Forthing T5EVO HEV Specification | |||
| Item | Description | Luxury type | Exclusive type |
| Dimension | |||
| Length*Width*Height(mm) | 4595*1865*1680 | ||
| Wheelbase（mm) | 2715 | ||
| Engine | |||
| Driving Mode | - | Front drive | Front drive |
| Brand | - | DFLZM | DFLZM |
| Engine Model | - | 4E15T | 4E15T |
| Displacement | - | 1.493 | 1.493 |
| Intake Form | - | Turbo intercooling | Turbo intercooling |
| Rated Power (kW) | - | 125 | 125 |
| Rated Power Speed (rpm) | - | 5500 | 5500 |
| Maximum Torque (N.m) | - | 280 | 280 |
| Maximum Torque Speed (rpm) | - | 1500-3500 | 1500-3500 |
| Tank Volume (L) | - | 55 | 55 |
| Motor | |||
| Motor Model | - | TZ220XYL | TZ220XYL |
| Motor Type | - | Permanent magnetic synchronous machine | Permanent magnetic synchronous machine |
| Cooling Type | - | Oil cooling | Oil cooling |
| Peak Power (kW) | - | 130 | 130 |
| Rated Power (kW) | - | 55 | 55 |
| Motor Maximum Speed (rpm) | - | 16000 | 16000 |
| Peak Torque (N.m) | - | 300 | 300 |
| Power Type | - | Hybrid | Hybrid |
| Braking Energy Recovery System | - | ● | ● |
| Multistage Energy Recovery System | - | ● | ● |
| Battery | |||
| Material of Power Battery | - | Ternary polymer lithium battery | Ternary polymer lithium battery |
| Cooling Type | - | Liquid cooling | Liquid cooling |
| Battery Rated Voltage (V) | - | 349 | 349 |
| Battery Capacity (kwh) | - | 2.0 | 2.0 |
60% purely electric operating conditions.
Regular urban roads with only 40% engine intervention, reducing engine noise nuisance (HONDA CRV HEV 55% pure electric operating conditions)
Improves and surpasses the competition in fuel economy
Dongfeng forthing 2023 hybrid SUV cars on sale
-
Highly integrated and efficient
Drive motor, generator, double motor controller, hydraulic control module, reducer five in one, highly integrated
High efficiency oil-cooled flat wire motor, driving motor and generator are using Hair-pin flat wire motor, and oil cooling technology, the highest efficiency of 97%
High efficiency working mode
Integrated exhaust manifold cylinder head
Continuous variable displacement oil pump; Electronic thermostat; Low friction moving parts
-
Highly integrated and efficient
Drive motor, generator, double motor controller, hydraulic control module, reducer five in one, highly integrated
High efficiency oil-cooled flat wire motor, driving motor and generator are using Hair-pin flat wire motor, and oil cooling technology, the highest efficiency of 97%

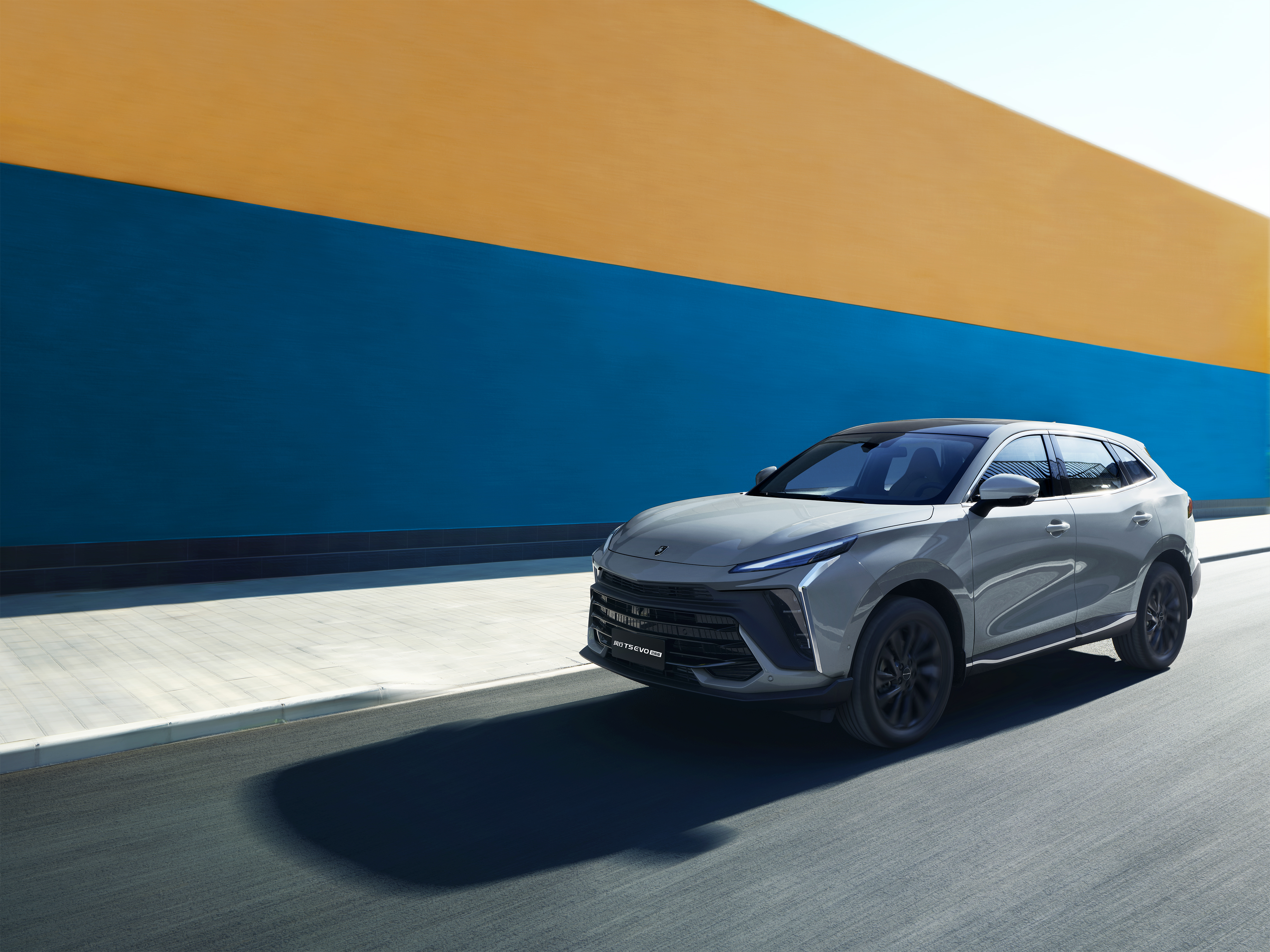

Dongfeng forthing T5 HEV SUV
strong power、Save fuel and energy
Overhead 350bar high pressure cylinder direct injection
Details
-

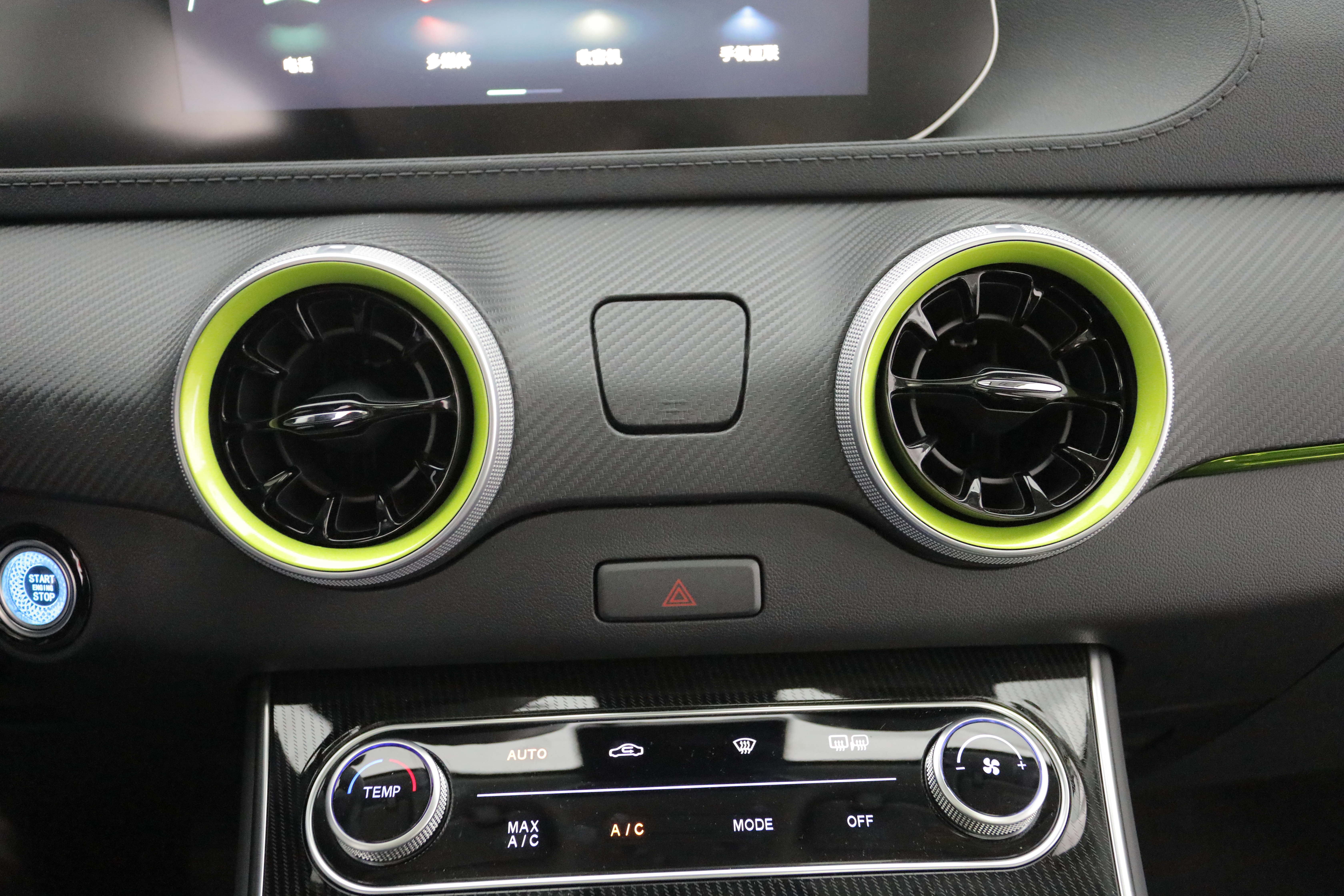

Center console display
-
Console display
-
Panoramic skylight
Panoramic skylight
